Instrumentation
BRÜEL & KJÆR SOUND & VIBRATION MEASUREMENT A/S - DENMARK
Hand -held Analyzer Type 2270 is designed as an advanced solution for sound and vibration measurement, analysis and recording.
Built on the award winning Type 2250 design, Type 2270 continues to blend the best of today’s hand-held technologies with over 60 years of experience in sound and vibration measurement solutions.
The design philosophy of Type 2270 is to speedily present the operator with the measurement result in the palm of his hand.
This philosophy is carried through to each of the application modules currently available for Type 2270:
Sound Level Meter application
Real-time frequency analysis
Logging (noise level profiling)
Sound and vibration recording
FFT analysis of sound and vibration
Reverberation time measurement
International Standards :
IEC61252 , ANSI S1.25
IEC60651.1979 Type 2a
IEC60804.2000 Type 2a
ANSIS1.4.1983 Type s(1)
Nor118 SOUND LEVEL METER TYPE 1, NORSONIC - NORWAY
Norsonic Ν-118 – Type 1, Norway . Portable advanced digital analyser.
A complete precise sound level meter Type 1 that fulfills all the technical specifications in I.E.C Publications 60651-1994, 60804-1993 and IEC 61672-1 class 1, IEC 61260 class 1 in octaves/third octave bands.
Norsonic Ν-118 – Type 1 recommended for companies or organizations that need to examine and certify the sound levels that cause noise sources.
Real Time Octaves/Third Octaves, 120dB Dynamic Range, Reverberation time measurements
High Resolution Backlight Display, Huge Memory
Preamplifier Nor1201 general purpose low noise 1/2" preamplifier with heating and integral 7 pin Lemo connector with push/pull mounting.
Nor1226 Free-field Microphone, ½" free field precision microphone for laboratory work, covering the frequency range from 3.15Hz to 40kHz. The small size and lower sensitivity makes the microphone extremely rugged and stable. Measures sound levels up to 160dB.
Nor1270 Accelerometer TYPE 1, Norsonic, Norway
Accelerometer Kit Type 1505 Nominal Sensitivity 2.5 V/ms-2, Measurement range:+/- 1000 ms-2, Lower frequency limit: 1 Hz, Reference Sensitivity at 80 Hz and 22o C, Voltage sensitivity: 5,042 mV/m/s2 / 49,45 mV/g, Maximum acceleration â+ â- 1100 m/s2, Electric noise (20 ..50000Hz) < 30μV
CASTLE DUAL LEVEL SOUND METER CALIBRATOR TYPE 1 - UK
Dual Level Sound Meter Calibrator
Technical Data:
Applicable Standards
IEC60942:2003 Sound Calibrators, Class 1/C. ut, 94dB or 104dB relative to 20µPaNominal Sound Pressure level at 101.3kPa (760mm Hg) 23Ί & 50%RH
Tolerance: ± 0.3dB
Harmonic Distortion: < 3%
Temperature range -10°C to 50ΊC
Nor1270 ACCELEROMETER TYPE 1, NORSONIC - NORWAY
Accelerometer Kit Type 1505
Technical Data:
Nominal Sensitivity 2.5 V/ms-2
Measurement range:+/- 1000 ms-2
Lower frequency limit: 1 Hz
Reference Sensitivity at 80 Hz and 22o C
Voltage sensitivity: 5,042 mV/m/s2 / 49,45 mV/g
Maximum acceleration â+ â- 1100 m/s2
Electric noise (20 ..50000Hz) < 30μV
DODECAHEDRON SPEAKER ANV MEASUREMENTS SYSTEMS - UK
For reverberation time measurements and airborne noise transmission to the requirements of ISO 140 & 717 ANV Measurement Systems
Technical Data:
Frequency Response: 100Hz to 5000Hz 1 / 3 octave center frequency
Rated complex reaction: 6 Ohms
Regional Number: 12 drivers stage a serial - parallel networks
Maximum power: 600W rms
Sound Power Level: 120 dB
Weight: 16 kg
Size: 420mm diameter

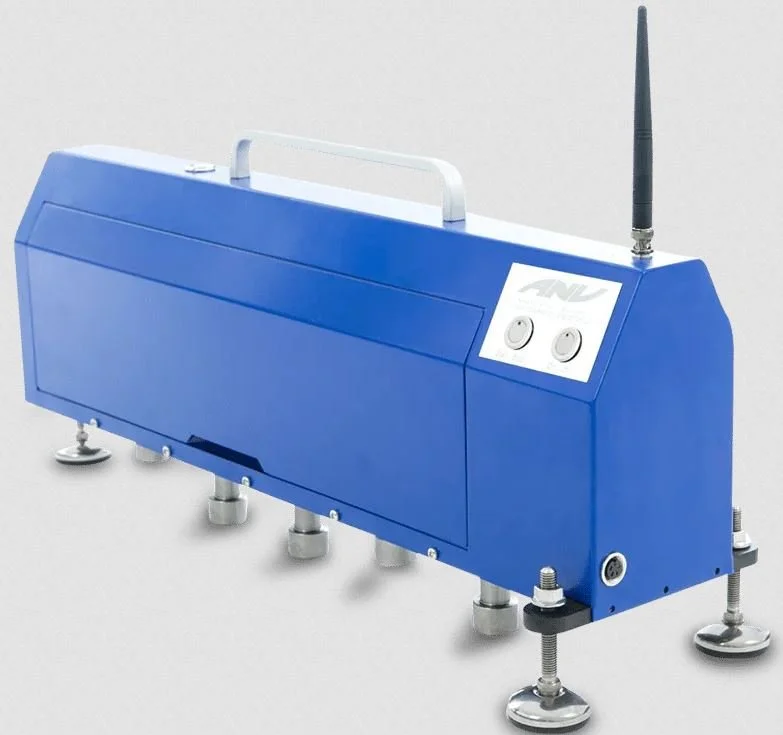

TAPPING MACHINE ANV MEASUREMENTS SYSTEMS TM-01 - UK
Tapping Machine
The ANV Measurement Systems Tapping Machine comes with mains and battery power and a really good remote control as standard. A lightweight (just over 10 kg) yet robust machine that was designed and is precision engineered and manufactured in the UK :
Technical Data:
Fully compliant with Annex A of ISO 140-7.1998
Robust lightweight and portable
Excellent Quality
Accurate electronic speed controller
